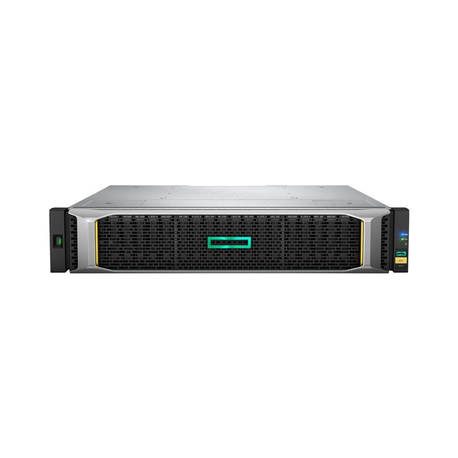

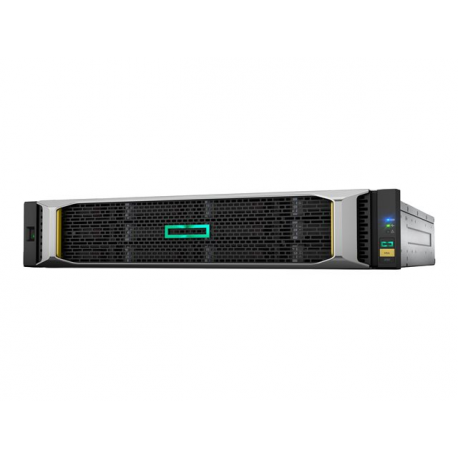

HPE Modular Smart Array 2050 SAS Dual Controller SFF Storage - Hard drive array - 24 bays (SAS-2) - rack-mountable - 2U
HPE Modular Smart Array 2050 SAS Dual Controller SFF Storage - Hard drive array - 24 bays (SAS-2) - rack-mountable - 2U
Manufacturer
•HPE
Reference
•Q1J29A
Article
•1536664
Intrastat
•84717020
Shipping weight
•18.4 kg
Device Type
Hard drive array
Enclosure Type
Rack-mountable - 2U
Installed Devices / Modules Qty
0
Supported Devices / Modules Qty
24
Supported Drives
SAS-2
Max Supported Capacity
76.8 TB
Maximum LUNs
512
CPU
No CPU
Type
RAID (iSCSI)
Installed Qty
2
Interface Type
SAS 6Gb/s
Data Transfer Rate
600 MBps
Cache / Buffer Size (Max)
8 GB
RAID Level
RAID 1, RAID 5, RAID 6, RAID 10
Installed Qty
2
Expansion Bays
24 (total) / 24 (free) - 2.5" SFF
Interfaces
8 x SAS 12Gb/s ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS 12Gb/s
OS Required
HP-UX, SuSe Linux, Apple MacOS X, Microsoft Windows, Red Hat Enterprise Linux, HP OpenVMS, Microsoft Windows Server 2012, VMware ESXi 5.x, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, VMware ESXi 6.x
Features
Systems Insight Manager (SIM)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN55022, GS, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A, EN61000-3-3, EN61000-3-2
ENERGY STAR Certified
Yes
Power Device
2 x internal power supply - hot-plug
Max Supported Qty
2
Power Redundancy
Yes
Voltage Required
AC 120/230 V
Power Consumption Operational
432 Watt
Width
44.7 cm
Depth
49.5 cm
Height
8.9 cm
Weight
18.4 kg
Service & Support
Limited warranty - parts - 3 years
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Sound Emission
55 dBA
