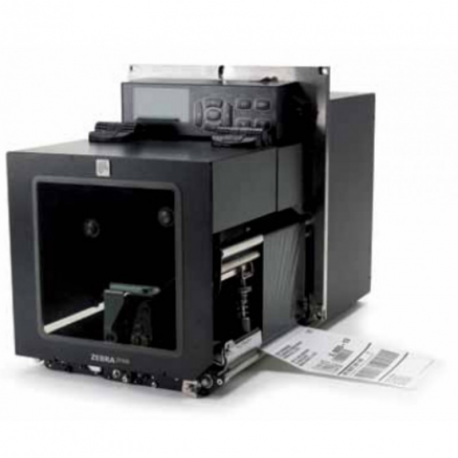

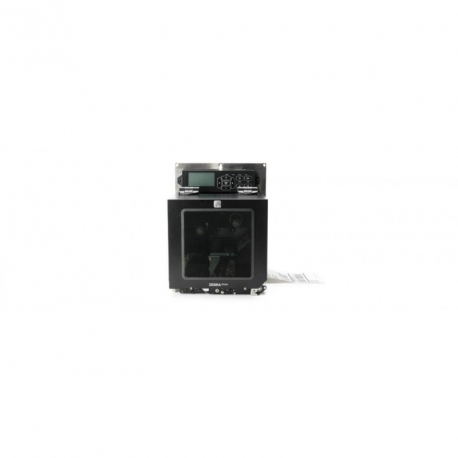

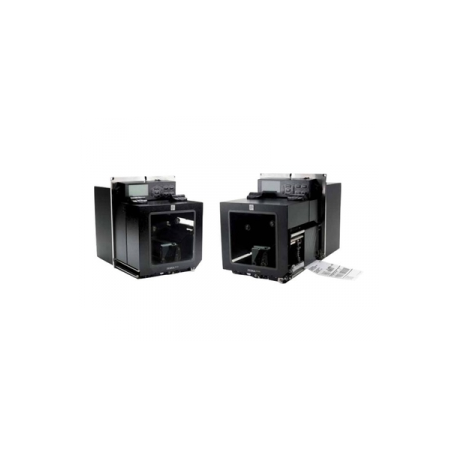

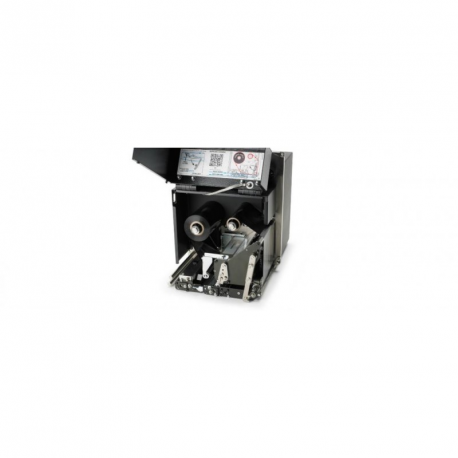

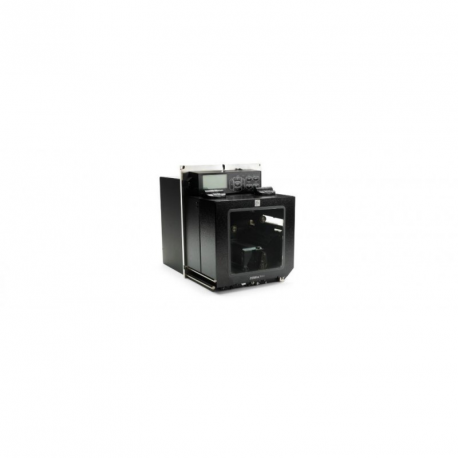

Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
images are for illustrative purposes only
New
Article: 448649 Intrastat: 84433210 SKU: ZE50043-L0E0000Z
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 305 mm/sec - B/W - 300 dpi |
| Built-in Devices | Status LCD, Applicator Interface Port |
| Connectivity Technology | Wired |
| Interface | Parallel, USB 2.0, LAN, serial |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Fonts | CG Triumvirate Bold Condensed |
| Features | Realtime clock |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5 |
| Printer Features | Left-hand orientation, Multi-level Element Energy Equalizer (E3) |
| Processor | 133 MHz |
| RAM Installed (Max) | 16 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 64 MB |
| Media Type | Continuous forms, die cut labels |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 16 mm |
| Max Media Size (Custom) | 114 mm x 991 mm |
| Media Sizes | Roll (1.6 - 11.4 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 3810 mm |
| Media Thickness Range | 0.135 mm - 0.254 mm |
| Roll Maximum Outer Diameter | 101.6 mm |
| Roll Core Diameter | 25.4 mm |
| Networking | Print server |
| Network Controller Name | ZebraNet 10/100 Print Server |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x parallel |
| Included Accessories | Reflective media sensor, transmissive media sensor |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC Class A certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class A, CCC, IEC 60950-1, KCC, GOST-R, S Mark, NRTL |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Factor Correction | Yes |
| OS Required | Microsoft Windows Vista / XP / 7, Microsoft Windows 2003, Microsoft Windows Server 2008 |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Width | 24.5 cm |
| Depth | 38 cm |
| Height | 30 cm |
| Weight | 15.4 kg |
