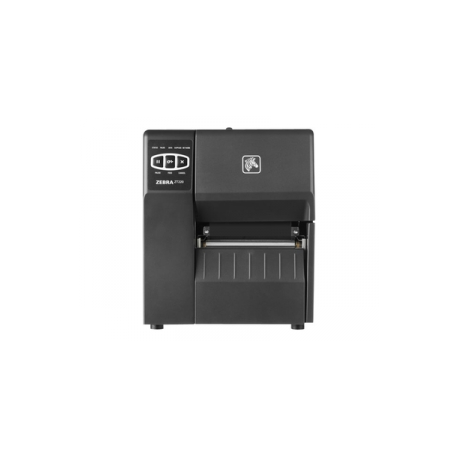

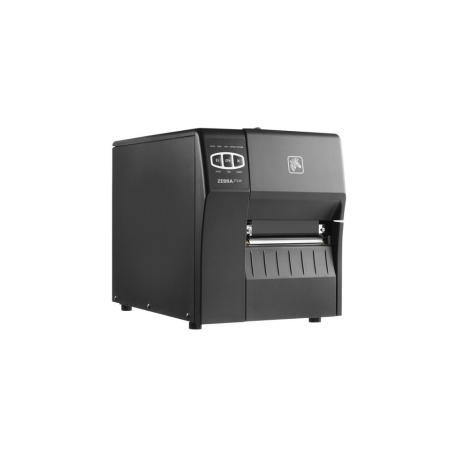

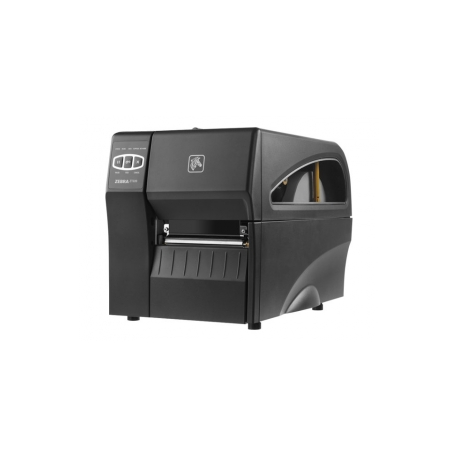

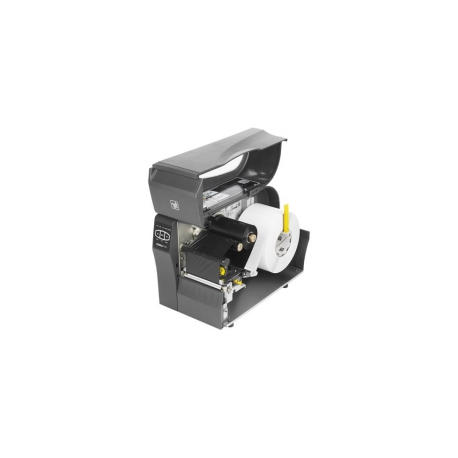

Zebra ZT220 - Label printer - thermal transfer - Roll (11.4 cm) - 203 dpi - up to 152 mm / sec - USB, serial - tear bar
Manufacturer
•ZEBRA
Reference
•ZT22042-T0E000FZ
Article
•621661
Intrastat
•84433210
Shipping weight
•9.1 kg
USBSerial portThermal transfer203 dpi104 mm
Zebra ZT200 Series ZT220 - Label printer - thermal transfer - Roll (11.4 cm) - 203 dpi - up to 152 mm/sec - USB, serial - tear bar
Printer Type
Label printer - thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 152 mm/sec - B/W - 203 dpi - Roll (11.4 cm)
Built-in Devices
Tear bar
Connectivity Technology
Wired
Interface
USB, serial
Max Resolution (B&W)
203 dpi
Image Enhancement Technology
Multi-level Element Energy Equalizer
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Features
Tear bar
Fonts Included
1 x scalable ¦ 7 x bitmapped
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
Zebra Programming Language (ZPL) support, XML-enabled printing, Multi-level Element Energy Equalizer (E3)
Processor
400 MHz
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
128 MB
Media Type
Labels, continuous paper labels, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
19.4 mm
Max Media Size (Custom)
114 mm x 991 mm
Media Sizes
Roll (1.94 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3988 mm
Media Thickness Range
0.076 mm - 0.25 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm, 25 mm
Media Feeders
1 x manual - 1 roll - Roll (11.4 cm)
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB
Included Accessories
Reflective media sensor, transmissive media sensor
Features
LED indicator
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15 B, CCC, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
47 - 63 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Service & Support
Limited warranty - 1 year
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
24.2 cm
Depth
43.2 cm
Height
27.7 cm
Weight
9.1 kg
Weight (Shipping)
11.4 kg
Zebra CARDBOARD CORESCode: 15055
CORES/RIBBON SPINDLES ZT200 (QTY 2)Code: P1037974-012
KIT GROUND CONTACT ZT200 SERIESCode: P1037974-015
Zebra - Kit front lower panelsCode: P1037990-004
Zebra - Printer cover - for Zebra ZT220, ZT230Code: P1037974-041
POWER SWITCH ZT200 SERIESCode: P1037974-019
Zebra - Front lower panelsCode: P1037974-033
Zebra - Kit head open sensorCode: P1037974-025
Zebra - Media hangerCode: P1037974-027
Zebra - Cutter catch tray - for Zebra ZT220, ZT230Code: P1037974-037
Zebra - Ribbon sensor kit - for Zebra ZT220, ZT230Code: P1037974-023
Zebra - Top plate kit - for ZT200 SeriesCode: P1037974-042
KIT MEDIA WINDOW ZT230/ZT210Code: P1037974-049
Zebra - Dispenser front bezelCode: P1079903-022
Zebra - Ribbon supply spindleCode: P1037974-050
Zebra - Outer media guide kitCode: P1037974-016
Zebra - Printer platen roller - for Zebra ZT220, ZT230Code: P1037974-028
Zebra - Media dancer kit - for Zebra ZT120, ZT220, ZT230Code: P1037974-057
Zebra - Take label sensorCode: P1037974-024
Zebra - Reflective sensorCode: P1037974-022
Zebra - Assorted hardwareCode: P1037974-044
Kit Antenna Replacement N Radi os for TabletopsCode: P1037974-053
Zebra - Thermal transfer print mechanismCode: P1037974-056
Zebra - Peel unit rollerCode: P1037974-039
Zebra - Drive gears kitCode: P1037974-029
Zebra - Kit thermal transfer print mechanismCode: P1037974-013
Zebra - Drive gears kitCode: P1037974-061
Zebra - Media sensorCode: P1037974-021
Zebra - Kit toggle barCode: P1037974-014
Zebra - Housing for platen rollerCode: P1037974-059
Zebra - Kit electronics coverCode: P1037974-034
Zebra - Parallel portCode: P1037974-002
Zebra - Printer media coverCode: P1037990-003
Zebra - Printer media cover - for Zebra ZT230Code: P1037974-032
Kit Door for LTU ZT230Code: P1037974-054
Kit Static Brush for Cutter ZT200 SeriesCode: P1037974-036
Zebra - Ribbon take up spindleCode: P1037974-051
Zebra - Packaging kitCode: P1037990-018
Zebra - Drive motor for 203 dpi and 300 dpiCode: P1037974-062
Zebra - Packaging kitCode: P1037974-045
Zebra - Printer clock - for Zebra ZT220, ZT230Code: P1037974-004
Kit Power Supply ZT200 SeriesCode: P1037974-018
Zebra - Drive motor kit - for Zebra ZT120, ZT220, ZT230Code: P1037974-030
Zebra - Liner take up spindle and motor kitCode: P1037974-040
Zebra - Printer peel option - for Zebra ZT220, ZT230Code: P1037974-008
Zebra - Ribbon systemCode: P1037990-001
Zebra - Peel unitCode: P1037974-071
Zebra - Ribbon systemCode: P1037974-026
Zebra - Control panelCode: P1037974-031
Zebra - Conversion kit - for Zebra ZT220, ZT230Code: P1037974-006
Zebra - 203 dpi - printhead - for Zebra ZT220, ZT230Code: P1037974-010
Kit Main Logic boardCode: P1037974-017
Zebra - Main logic board - for Zebra ZT220, ZT230Code: P1037974-068
ZebraNet - Print server - 802.11b / g / nCode: P1058930-097C
Zebra - 300 dpi - printhead - for Zebra ZT220, ZT230Code: P1037974-011
Zebra - Packaging kitCode: P1037974-046
