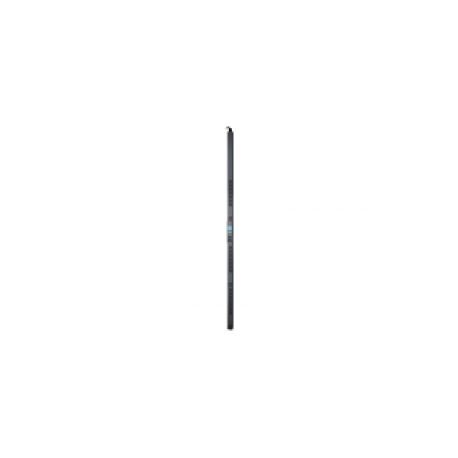

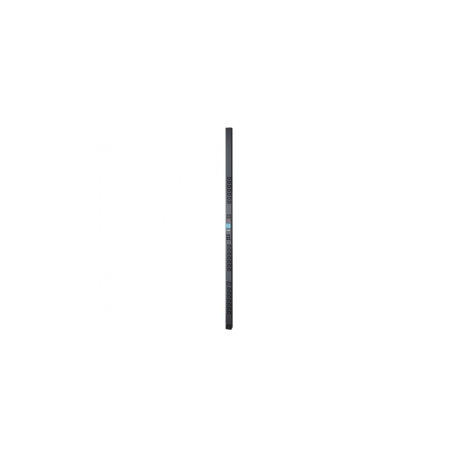

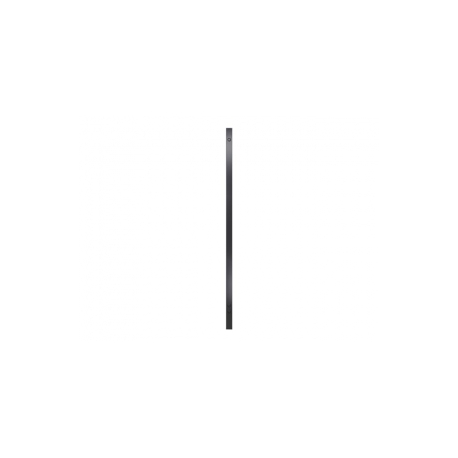

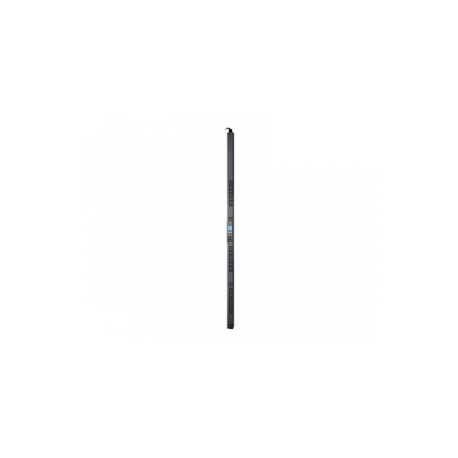

APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G - Power distribution unit (rack-mountable) - AC 200 / 208 / 230 V - 3.3 kW - Ethernet 10 / 100 - input: IEC 60320 C20 - output connectors: 24 - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G - Power distribution unit (rack-mountable) - AC 200 / 208 / 230 V - 3.3 kW - Ethernet 10 / 100 - input: IEC 60320 C20 - output connectors: 24 - 0U - black - for P / N: SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
Manufacturer
•SCHNEIDER
Reference
•AP8659
Article
•630805
Intrastat
•85044090
Shipping weight
•8.36 kg
<ul><li>Metering-by-outlet capability</li><li>Network management capabilities</li><li>Alarm thresholds</li><li>Power delays</li><li>Load indicator LED</li><li>Flash upgradeable</li><li>Integrates with StruxureWare data center expert</li></ul>
APC metered by outlet with switching rack power distribution units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment.<br /><br />Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.<br /><br /><p> </p>
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Colour
Black
Input Voltage
AC 200/208/230 V
Input Voltage Range
AC 100 - 240 V
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C20
Power Output Connectors Details
21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19
Output Voltage
AC 208 V
Max Electric Current
16 A
Power Capacity
3.3 kW
Remote Management Interface
Ethernet 10/100
Remote Management Protocol
SNMP, Telnet, HTTPS, SSH
Interfaces
1 x LAN - RJ-45 ¦ 1 x management - RJ-12
Cables Included
Serial cable - external
Rack Mounting Kit
Included
Features
E-mail notification, audible alarm, LED display, voltage monitoring, LED indicators, peripherals power switching (automatic), vertical orientation, firmware upgradable
Compliant Standards
UL, EN 61000-3-2, ICES-003, VDE, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, PSE Mark, REACH
Service & Support
Limited warranty - 2 years
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 95% (non-condensing)
Width
5.6 cm
Depth
5.1 cm
Height
182.9 cm
Weight
6.09 kg
Shipping Width
16.2 cm
Shipping Depth
11.7 cm
Shipping Height
203.8 cm
Shipping Weight
8.36 kg
Designed For
P/N: AP6201CH, AP7950B, AR2200, AR2280, AR2487G, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMC3000RMI2U, SMT1500RM1U, SMT1500RMI1U, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX
