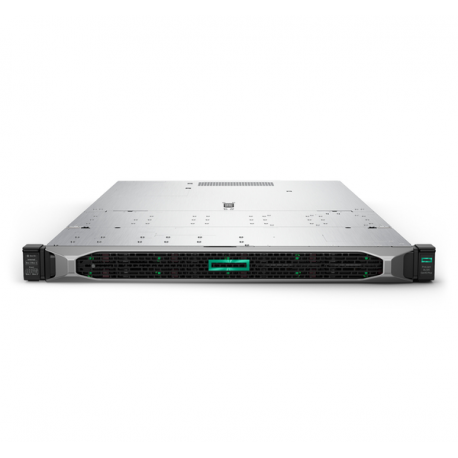

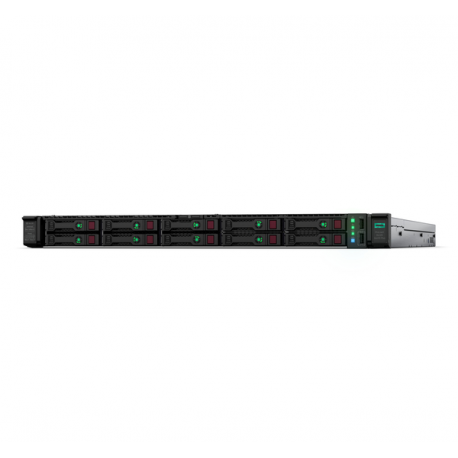

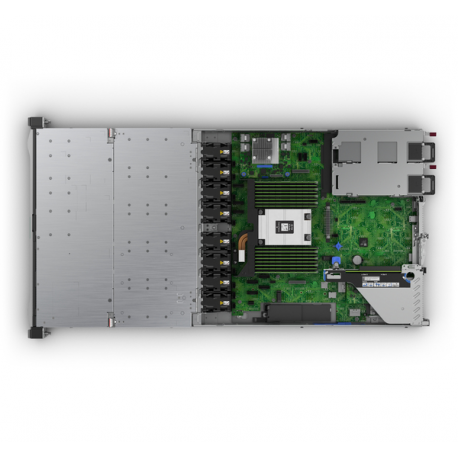

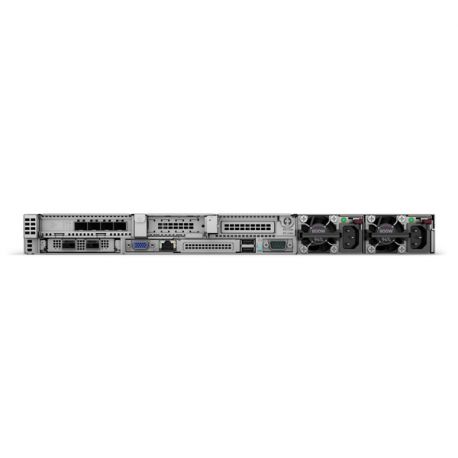

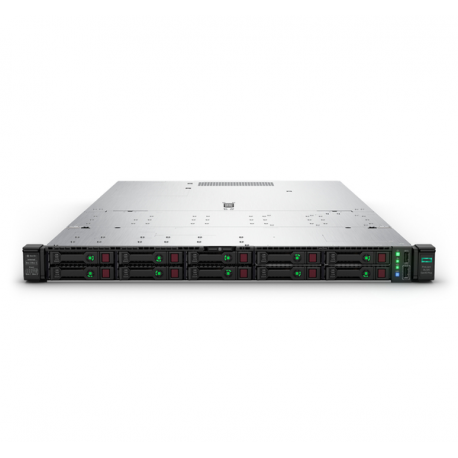

HPE ProLiant DL325 Gen10 Plus - Server - rack-mountable - 1U - 1-way - 1 x EPYC 7302P / 3 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
HPE ProLiant DL325 Gen10 Plus - Server - rack-mountable - 1U - 1-way - 1 x EPYC 7302P / 3 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
Manufacturer
•HPE
Reference
•P18604-B21
Article
•1689390
Shipping weight
•22.6 kg
Type
Server
Product Form Factor
Rack-mountable - 1U
Server Scalability
1-way
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide
CPU
AMD EPYC 7302P
Clock Speed
3 GHz
Max Turbo Speed
3.3 GHz
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
Socket SP3
Installed Size
L3 Cache - 128 MB
Cache Per Processor
128 MB
Installed Size
32 GB / 1 TB (max)
Technology
DDR4 SDRAM
Rated Memory Speed
3200 MHz
Form Factor
DIMM 288-pin
Slots
16 (Total) / 14 (empty)
Features
Registered, HPE SmartMemory
Configuration Features
2 x 16 GB
RAM Supported
PC4-20800 - 2 TB Load-Reduced ¦ PC4-20800 - 1 TB registered
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
Type
No optical drive
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
Intel I350-T4
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x HPE iLO (1 in front) ¦ 5 x USB 3.0 ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 1 x VGA
Included Accessories
HPE Easy Install Rails, 7 x standard fans
Compliant Standards
AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
500 Watt
ENERGY STAR Certified
Yes
ENERGY STAR Version
3.0
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Width
43.46 cm
Depth
82.62 cm
Height
4.28 cm
Weight
17 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
