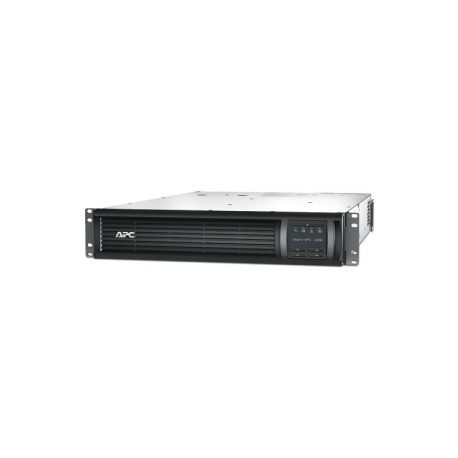

APC Smart-UPS 2200 LCD - UPS (rack-mountable) - AC 220 / 230 / 240 V - 1.98 kW - 2200 VA - RS-232, USB - output connectors: 9 - 2U - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS 2200 LCD - UPS (rack-mountable) - AC 220 / 230 / 240 V - 1.98 kW - 2200 VA - RS-232, USB - output connectors: 9 - 2U - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Manufacturer
•SCHNEIDER
Reference
•SMT2200RMI2U
Article
•64912
Intrastat
•84734080
Shipping weight
•1.4 kg
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
UPS Technology
Line interactive
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 299 V
Frequency Provided
47 - 53 / 57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
3 x power IEC 60320 C20, power CEE 7/7, power BS 1363A

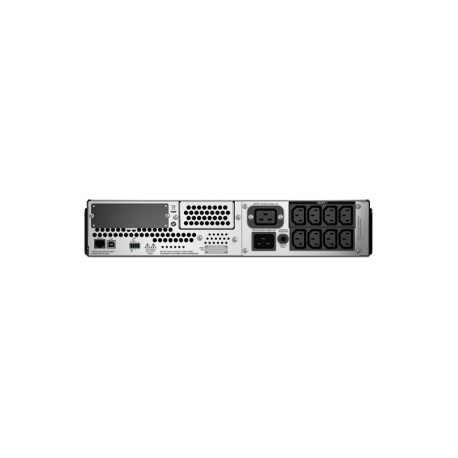

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V 47 - 53 / 57 - 63 Hz
Power Capacity
1.98 kW / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
375 Joules
Technology
Lead Acid
Run Time (Up To)
5.4 min at full load ¦ 16.1 min at half load
Recharge Time
3 hours
Remote Management Interface
RS-232, USB
Interfaces
1 x USB ¦ 1 x serial
Expansion Slots
1 SmartSlot
Cables Included
Serial cable ¦ USB cable ¦ Power cable - integrated - 2 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR)
Compliant Standards
C-Tick, GOST, EN 60950, GS, VDE, IEC 62040-1-1, RoHS Exemption 7b, IEC 62040-2, IRAM, WEEE
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Width
48 cm
Depth
68.3 cm
Height
8.6 cm
Weight
42.3 kg
Shipping Width
60 cm
Shipping Depth
98 cm
Shipping Height
25.4 cm
Shipping Weight
49.7 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR33
