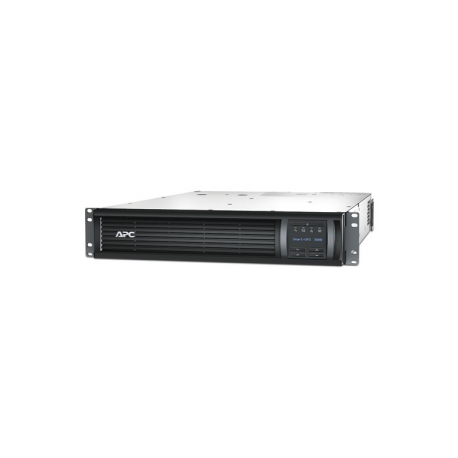

APC Smart-UPS 3000 LCD - UPS (rack-mountable) - AC 220 / 230 / 240 V - 2.7 kW - 3000 VA - RS-232, USB - output connectors: 9 - 2U - for P / N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674
APC Smart-UPS 3000 LCD - UPS (rack-mountable) - AC 220 / 230 / 240 V - 2.7 kW - 3000 VA - RS-232, USB - output connectors: 9 - 2U - for P / N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674
Manufacturer
•SCHNEIDER
Reference
•SMT3000RMI2U
Article
•64911
Intrastat
•84734080
Shipping weight
•1.4 kg
<ul><li>Wide input voltage range</li><li>LED indicators</li><li>Boost and trim Automatic Voltage Regulation (AVR)</li><li>Green mode</li><li>Energy meter</li><li>Intuitive LCD interface</li><li>Single switched outlet group</li><li>Pure sine wave output on battery</li><li>Disconnected battery notification</li><li>Sequenced network shutdown and reboot</li><li>Adjustable voltage sensitivity</li><li>Adjustable voltage-transfer points</li><li>Audible alarms</li><li>Automatic restart of loads after UPS shutdown</li><li>Cold-start capable</li><li>Hot-swappable batteries</li><li>Network manageable</li><li>Battery failure notification</li><li>Serial connectivity</li><li>Temperature-compensated battery charging</li><li>Intelligent battery management</li><li>Frequency and voltage regulation</li></ul>
Wide input voltage range is designed for harsh electrical environments to save battery life. LED indicators provide easy-to-read status of the unit and utility power conditions. Boost and trim Automatic Voltage Regulation (AVR) eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
UPS Technology
Line interactive
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 299 V
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C20, power CEE 7/7, power BS 1363A

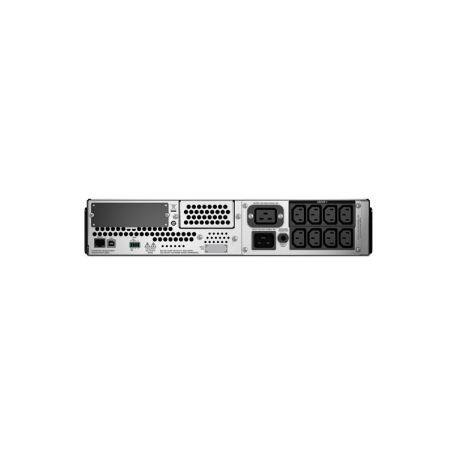

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V
Power Capacity
2.7 kW / 3000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
320 Joules
Circuit Protection
Circuit breaker
Technology
Lead Acid
Run Time (Up To)
3.2 min at full load ¦ 11.5 min at half load
Recharge Time
3 hours
Remote Management Interface
RS-232, USB
Interfaces
1 x USB ¦ 1 x serial
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Cables Included
Serial cable ¦ USB cable ¦ Power cable - integrated - 2 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators
Compliant Standards
C-Tick, GOST, EN 60950, GS, VDE, IEC 62040-1-1, RoHS Exemption 7b, IEC 62040-2, IRAM, WEEE, REACH
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Width
48 cm
Depth
68.3 cm
Height
8.6 cm
Weight
44.3 kg
Shipping Width
60 cm
Shipping Depth
98 cm
Shipping Height
25.4 cm
Shipping Weight
51.7 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, A
