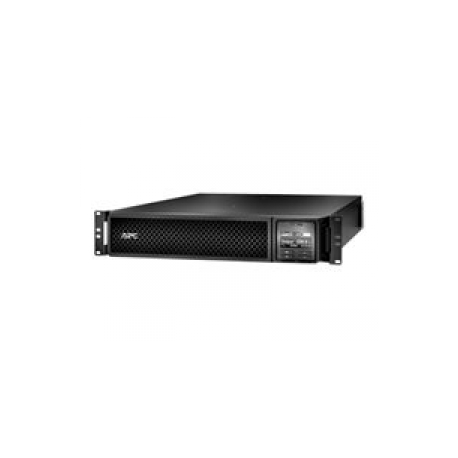

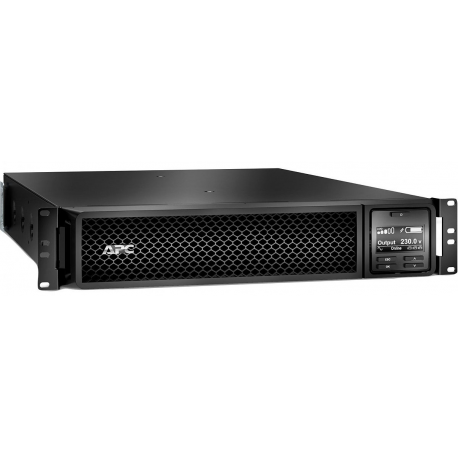

APC Smart-UPS SRT 2200VA RM - UPS (rack-mountable / external) - AC 220 / 230 / 240 V - 1980 Watt - 2200 VA - Lead Acid - RS-232, USB - output connectors: 10 - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS SRT 2200VA RM - UPS (rack-mountable / external) - AC 220 / 230 / 240 V - 1980 Watt - 2200 VA - Lead Acid - RS-232, USB - output connectors: 10 - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Manufacturer
•SCHNEIDER
Reference
•SRT2200RMXLI
Article
•1296033
Shipping weight
•34 kg
Total quantity in stocks
•13
Nearest delivery
•16.03.2026
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Colour
Black
UPS Technology
On-line
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 275 V
Input Voltage Range (Adjustable)
AC 100 - 275 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
3 x power IEC 60320 C20, power BS 1363A, Europlug (power CEE 7/16)
Power Output Connectors Details

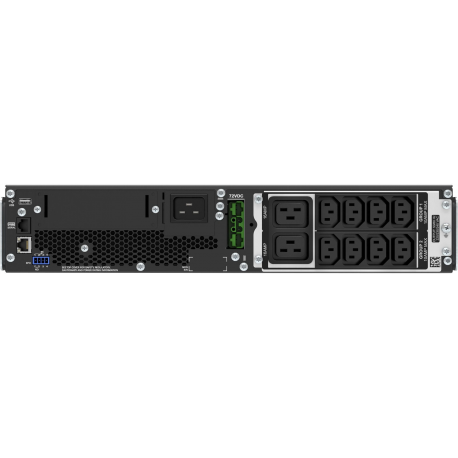

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V 50/60 Hz
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
340 Joules
Efficiency
96%, 92% at 100% Load
Quantity
1
Technology
Lead Acid Lead Acid
Run Time (Up To)
3.9 min at full load ¦ 11.6 min at half load
Recharge Time
3 hours
Features
Maintenance free, sealed, leak-proof
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) ¦ 1 x management (USB) - 4 pin USB Type A
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Cables Included
Power cable 2.44 m ¦ Serial cable - external ¦ USB cable - external
Rack Mounting Kit
Included
Features
Audible alarm, emergency power off, LCD display, internal bypass, Eco-Mode
Compliant Standards
VDE, IEC 62040-2, RoHS, EN 62040-2, IP20, EAC, RCM, IEC 62040-1, EN 62040-1
Software Included
APC PowerChute Business Edition
ENERGY STAR
Yes
Service & Support
Limited warranty - replacement - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
55 dBA
Width
43.2 cm
Depth
58.4 cm
Height
8.5 cm
Weight
25 kg
Shipping Width
59.9 cm
Shipping Depth
81 cm
Shipping Height
24.6 cm
Shipping Weight
34.02 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W
