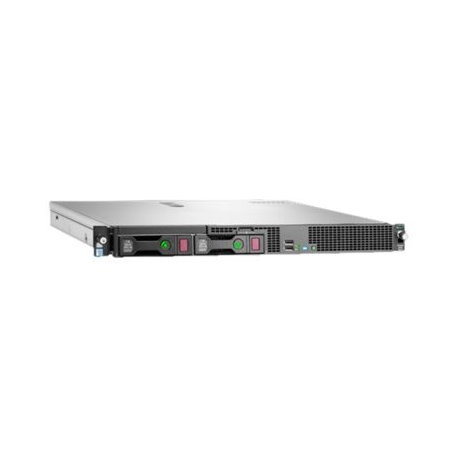

HPE ProLiant DL20 Gen9 Entry - Server - rack-mountable - 1U - 1-way - 1 x Pentium G4560 / 3.5 GHz - RAM 8 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - Matrox G200 - GigE - monitor: none
HPE ProLiant DL20 Gen9 Entry - Server - rack-mountable - 1U - 1-way - 1 x Pentium G4560 / 3.5 GHz - RAM 8 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - Matrox G200 - GigE - monitor: none
Manufacturer
•HPE
Reference
•871428-B21
Article
•1531353
Type
Server
Product Form Factor
Rack-mountable - 1U
Embedded Security
Trusted Platform Module (TPM 1.2 and TPM 2.0)
Server Scalability
1-way
Internal Bays Qty
2
Front Accessible Bays Qty
1
Localisation
Region: Worldwide
CPU
Intel Pentium G4560 / 3.5 GHz
Number of Cores
Dual-Core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Chipset Type
Intel C232
Installed Size
3 MB
Cache Per Processor
3 MB
Installed Size
8 GB / 64 GB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2400 MHz
Form Factor
DIMM 288-pin
Slots
4 (Total) / 3 (empty)
Features
Unbuffered, dual channel memory architecture
Configuration Features
1 x 8 GB
Type
No HDD
Type
1 x RAID - PCIe x4
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HP Dynamic Smart Array B140i
Channel Qty
10
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Type
No optical drive
Monitor Type
None.
Graphics Processor
Matrox G200
Video Interfaces
VGA
Interface (Bus) Type
PCI Express x2
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
HP 332i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller
Integrated Lights-Out 4
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Bays
1 (total) / 1 (free) x external ¦ 2 (total) / 2 (free) x internal 3.5" LFF
Slots
4 (total) / 3 (free) x DIMM 288-pin ¦ 1 (total) / 0 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x FlexibleLOM
Interfaces
1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 (2 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal)
Included Accessories
HPE Short Friction Rail kit
Compliant Standards
ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, K22, K24, ASHRAE Class A3
Device Type
Power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
290 Watt
80 PLUS Certification
80 PLUS Silver
Efficiency
92%
OS Certified
SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux
Service & Support
Limited warranty - parts and labour - 1 year - on-site - response time: next business day
Width
43.46 cm
Depth
38.22 cm
Height
4.32 cm
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90%
Sound Emission
18 dBA
