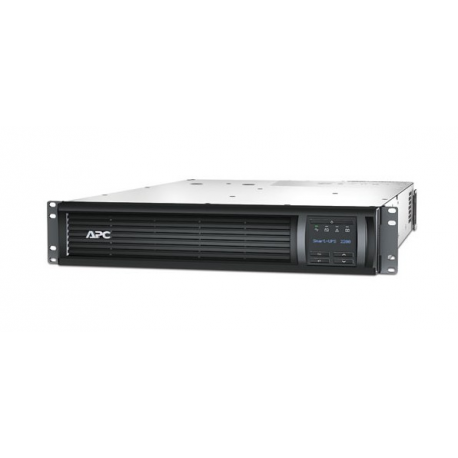

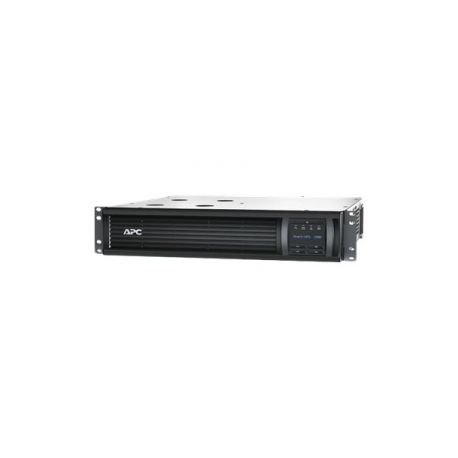

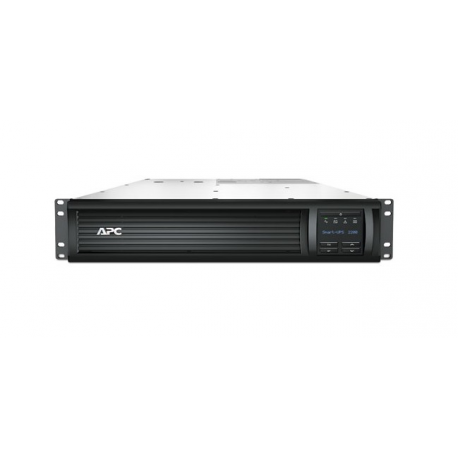

APC Smart-UPS 2200VA LCD RM - UPS (rack-mountable) - AC 230 V - 1980 Watt - 2200 VA - Ethernet, RS-232, USB - output connectors: 9 - 2U - with APC UPS Network Management Card - for P / N: AR3103SP, AR3106SP, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS 2200VA LCD RM - UPS (rack-mountable) - AC 230 V - 1980 Watt - 2200 VA - Ethernet, RS-232, USB - output connectors: 9 - 2U - with APC UPS Network Management Card - for P / N: AR3103SP, AR3106SP, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Manufacturer
•SCHNEIDER
Reference
•SMT2200RMI2UNC
Article
•1332587
Intrastat
•84734080
Shipping weight
•50.5 kg
Total quantity in stocks
•5
Nearest delivery
•13.03.2026
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
Bundled with
APC UPS Network Management Card
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 286 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
47 - 63 Hz
Frequency Required
50/60 Hz ± 3Hz
Input Connectors
1

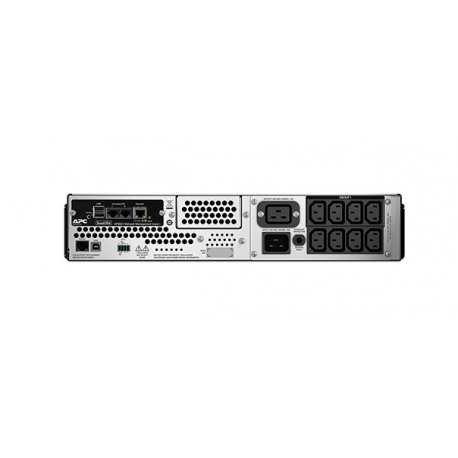

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 230 V ± 5% - 47 - 63 Hz
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
375 Joules
Circuit Protection
Circuit breaker
Technology
Lead Acid

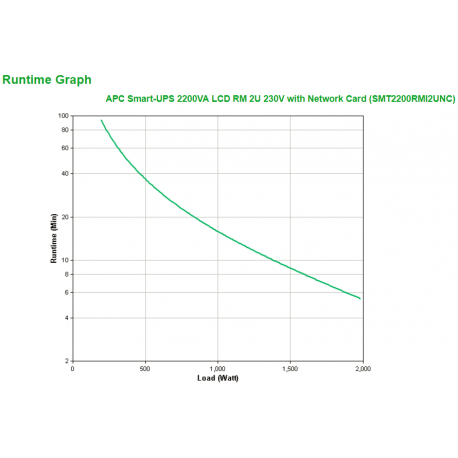

Run Time (Up To)
5.4 min at full load ¦ 16 min at half load
Recharge Time
3 hours
Transfer Time
4 ms
Features
Maintenance free, sealed, leak-proof
Remote Management Interface
Ethernet, RS-232, USB
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ Management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x SmartSlot
Included Accessories
Rack mounting rails, temperature probe
Cables Included
Serial cable - external ¦ USB cable - external ¦ Power cable - external - 2 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy metre
Compliant Standards
GS, VDE, IEC 62040-2, IRAM, RoHS, WEEE, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1
Software Included
APC PowerChute Business Edition
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Width
48 cm
Depth
68.3 cm
Height
8.6 cm
Weight
42.22 kg
Shipping Width
60 cm
Shipping Depth
98 cm
Shipping Height
25.4 cm
Shipping Weight
49.63 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF202BLK, ACF400, ACF402, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610
