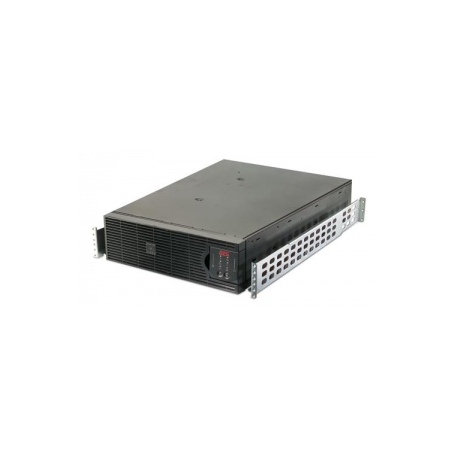

APC Smart-UPS RT 2200 Marine - UPS - AC 220 / 230 / 240 V - 1.54 kW - 2200 VA - RS-232 - output connectors: 10 - 3U - black
APC Smart-UPS RT 2200 Marine - UPS - AC 220 / 230 / 240 V - 1.54 kW - 2200 VA - RS-232 - output connectors: 10 - 3U - black
Manufacturer
•SCHNEIDER
Reference
•SURTD2200XLIM
Article
•1238666
Intrastat
•84734080
Shipping weight
•63.64 kg
<ul><li>Remote UPS management - enable management of your UPS by connecting it directly to the network</li><li>Advanced electrical features - excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high power efficiency</li><li>Intuitive monitoring - step by step navigation and menu screens for critical system information and data</li><li>Predictive replace battery - dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning</li><li>Fast battery charging capability - allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection</li><li>Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics</li><li>Single switched outlet group - single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding</li><li>Wide input voltage range - designed for harsh electrical environments to save battery life</li><li>Sine wave output - eliminates humming and heat generated when powering tubelights and fans</li><li>Intelligent battery charging - microprocessor controlled, 3-stage regulated charging ensures the fastest recharge times without decreasing battery life</li><li>Excellent footprint - small UPS footprint provides maximum usage of valuable electrical room floorspace</li><li>High online efficiency - reduces utlility costs, generates less heat</li><li>LED indicators - provide easy-to-read status of the unit and utility power conditions</li><li>Overload protection - safeguards unit from damage by automatically turning it off in the event of a short circuit or overload</li><li>Hot-swappable batteries - ensures clean, uninterrupted power to protected equipment while batteries are being replaced</li><li>Generator compatible - ensures clean, uninterrupted power to protected equipment when generator power is used</li><li>Field-replaceable power distribution panel - ensures compatibility with equipment that has different plug types</li><li>Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced</li><li>Automatic internal bypass - supplies utility power to the connected loads in the event of a UPS power overload or fault</li><li>Audible alarms - provides notification of changing utility power and UPS power conditions</li><li>User-replaceable batteries - increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)</li><li>Serial connectivity - provides management of the UPS via a serial port</li><li>Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature</li><li>Scalable runtime - allows additional run time to be quickly added as needed</li><li>Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging</li><li>Safety-agency approved - ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment</li><li>Programmable frequency - ensures compatibility with different input frequencies</li><li>Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances</li><li>Network manageable - provides remote power management of the UPS over the network</li><li>Frequency and voltage regulation - gives higher application availability by correcting poor frequency and voltage conditions without using the battery</li></ul>
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Using APC Smart-UPS RT, users can support power hungry blade servers or heavily loaded equipment racks. The flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.<br /><br /><p> </p>
Device Type
UPS - external
Battery Enclosure Type
Plug-in module
Height (Rack Units)
3U
Colour
Black
UPS Technology
On-line
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 180 - 280 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Power Output Connectors Details

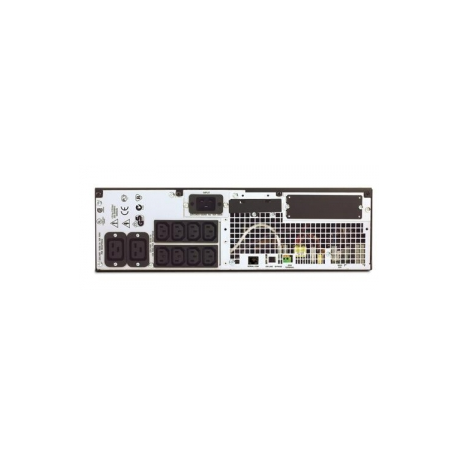

8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V ± 3% - 50/60 Hz
Power Capacity
1.54 kW / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
480 Joules
Quantity
2
Technology
Lead Acid
Run Time (Up To)
21 min at full load ¦ 48 min at half load
Recharge Time
2.5 hours
Remote Management Interface
RS-232
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x EPO (emergency power off)
Expansion Slots
1 SmartSlot
Cables Included
Serial cable - external
Rack Mounting Kit
Included
Features
Audible alarm, emergency power off, internal bypass, LED indicators
Compliant Standards
EN 60950, EN 61000-3-2, UL 1449, EN55022 Class A, EN 50091-2, RoHS, EN 50091-1, REACH
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Width
13 cm
Depth
66 cm
Height
43.2 cm
Weight
54.6 kg
Shipping Width
60.3 cm
Shipping Depth
98 cm
Shipping Height
34.7 cm
Shipping Weight
63.6 kg
