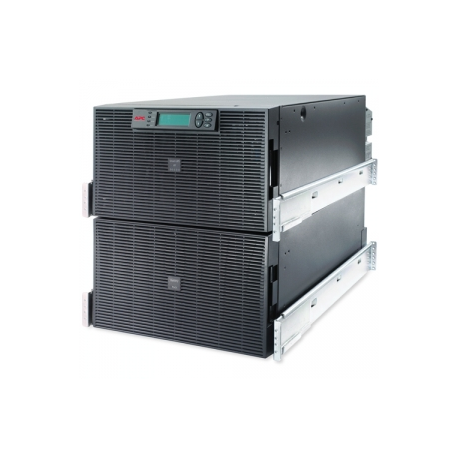

APC Smart-UPS RT - UPS (rack-mountable) - AC 220 / 230 / 240 V - 16 kW - 20000 VA - 3-phase / 1-phase - Ethernet 10 / 100, RS-232 - output connectors: 10 - 12U - black - for P / N: AR2487G, AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, NBWL0356A
APC Smart-UPS RT - UPS (rack-mountable) - AC 220 / 230 / 240 V - 16 kW - 20000 VA - 3-phase / 1-phase - Ethernet 10 / 100, RS-232 - output connectors: 10 - 12U - black - for P / N: AR2487G, AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, NBWL0356A
Ražotājs
•APC
Ražotāja kods
•SURT20KRMXLI
Artikuls
•75490
Intrastat
•84734080
Pakas svars
•292 kg
<ul><li>Built-in static bypass, Internal bypass</li><li>Less than 5% for full load</li><li>Maintenance-free sealed lead-acid battery with suspended electrolyte</li><li>Multi-function LCD status and control console</li><li>Audible and visible alarms</li><li>Full time multi-pole noise filtering</li><li>0.3% IEEE surge let-through</li><li>Zero clamping response time</li></ul>
Increases availability by allowing the UPS to be connected to two separate power sources. Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.<br /><br /><p> </p>
Device Type
UPS - rack-mountable

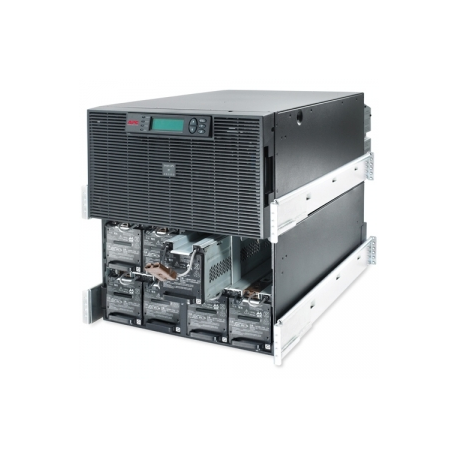

Battery Enclosure Type
Plug-in module
Height (Rack Units)
12U
Colour
Black
UPS Technology
On-line
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 160 - 280 V
Frequency Provided
50/60 Hz
Input Wiring
3-phase / 1-phase
Frequency Required
50/60 Hz
Input Connectors
1 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)

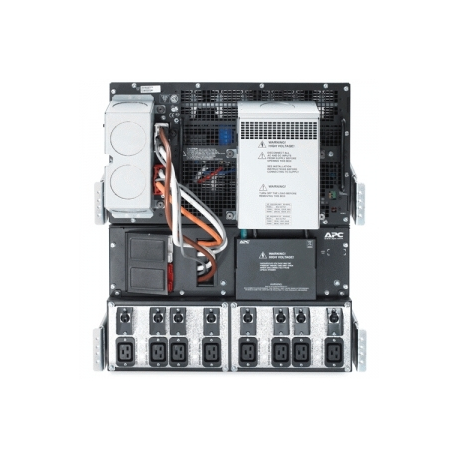

Power Output Connectors Details
1 x hardwire 3-wire (2PH + G) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 8 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V ± 5% - 50/60 Hz
Power Capacity
16 kW / 20000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Quantity
4
Technology
Lead Acid
Voltage Provided
192 V
Run Time (Up To)
4.9 min at full load
Recharge Time
2.5 hours
Remote Management Interface
Ethernet 10/100, RS-232
Remote Management Protocol
SNMP, Telnet, HTTP, HTTPS
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off)
Expansion Slots
SmartSlot
Cables Included
Serial cable - external
Rack Mounting Kit
Included
Features
Audible alarm, emergency power off, LCD display, built-in static bypass, internal bypass
Compliant Standards
UL 1449, VDE, IEC 62040-1-1
Software Included
APC PowerChute Business Edition
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
59 dBA
Width
43.2 cm
Depth
77.3 cm
Height
53.3 cm
Weight
248 kg
Shipping Width
61 cm
Shipping Depth
100 cm
Shipping Height
99 cm
Shipping Weight
314 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3
