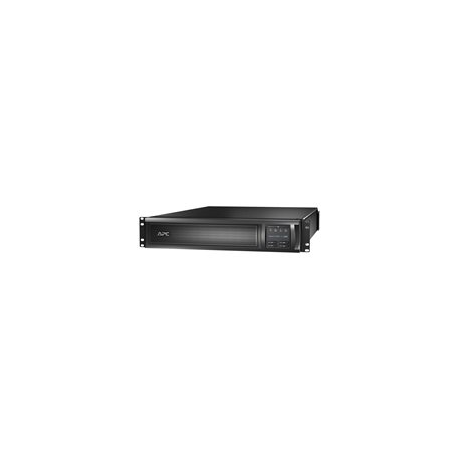

APC Smart-UPS X 2200 Rack / Tower LCD - UPS (rack-mountable / external) - AC 230 V - 1980 Watt - 2200 VA - Ethernet 10 / 100, RS-232, USB - output connectors: 9 - 2U - black - with APC UPS Network Management Card - for P / N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR9300SP
APC Smart-UPS X 2200 Rack / Tower LCD - UPS (rack-mountable / external) - AC 230 V - 1980 Watt - 2200 VA - Ethernet 10 / 100, RS-232, USB - output connectors: 9 - 2U - black - with APC UPS Network Management Card - for P / N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR9300SP
Ražotājs
•APC
Ražotāja kods
•SMX2200R2HVNC
Artikuls
•1502034
Pakas svars
•45.26 kg
<ul><li>Intuitive LCD interface</li><li>High frequency design</li><li>Auto recognition of external batteries</li><li>Predictive replace battery date</li><li>Green mode</li><li>Energy meter</li><li>Outlet group control</li><li>Sequenced shutdown and restart</li><li>Load shedding</li><li>Audible alarms</li><li>Pure sine wave output on battery</li><li>Multiple switched outlet groups</li><li>Wide input voltage range</li><li>Battery failure notification</li><li>High online efficiency</li><li>LED indicators</li><li>Overload protection</li><li>Cold-start capable</li><li>Hot-swappable batteries</li><li>Disconnected battery notification</li><li>Automatic self-test</li><li>Automatic restart of loads after UPS shutdown</li><li>Adjustable voltage-transfer points</li><li>Adjustable voltage sensitivity</li><li>Audible alarms</li><li>User-replaceable batteries</li><li>USB connectivity</li><li>Serial connectivity</li><li>Temperature-compensated battery charging</li><li>Scalable runtime</li><li>Intelligent battery management</li><li>Safety-agency approved</li><li>Rack/tower convertible</li><li>Power conditioning</li><li>Network manageable</li><li>Frequency and voltage regulation</li><li>Adjustable voltage sensitivity</li><li>Predictive failure notification</li></ul>
Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.<br /><br />High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.<br /><br />APC Smart-UPS X 2200 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime.<br /><br />Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.<br /><br /><p> </p>
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Colour
Black
Bundled with
APC UPS Network Management Card
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 140 - 280 V
Frequency Provided
47 - 53 / 57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C20

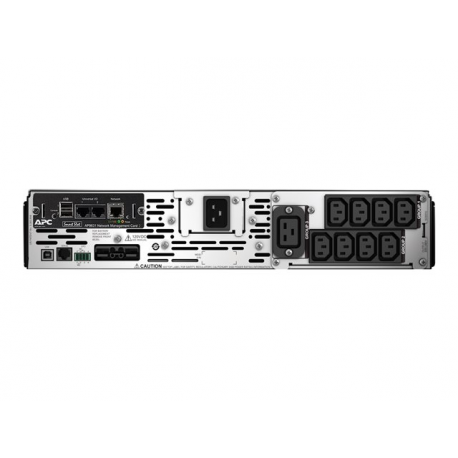

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 230 V 47 - 53 / 57 - 63 Hz
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
645 Joules
Circuit Protection
Circuit breaker
Efficiency
98.1%
Quantity
1
Technology
Lead Acid
Run Time (Up To)
9.8 min at full load ¦ 25.3 min at half load
Recharge Time
3 hours
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP
Interfaces
1 x USB ¦ 1 x RS-232 ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 0 (free) x SmartSlot
Cables Included
Serial cable ¦ USB cable ¦ Power cable 1.83 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function
Compliant Standards
CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH
Software Included
APC PowerChute Business Edition
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Width
43.2 cm
Depth
66.7 cm
Height
8.5 cm
Weight
37.24 kg
Shipping Width
59.6 cm
Shipping Depth
86.9 cm
Shipping Height
24.3 cm
Shipping Weight
45.26 kg
Designed For
P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R
