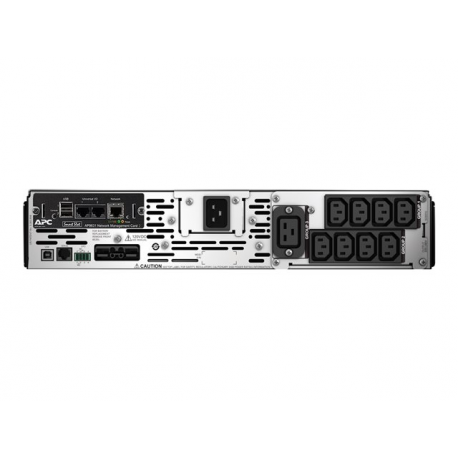

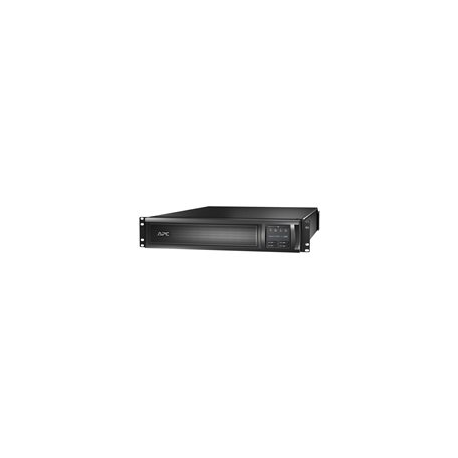

APC Smart-UPS X 2200 Rack / Tower LCD - UPS (rack-mountable / external) - AC 230 V - 1980 Watt - 2200 VA - Ethernet 10 / 100, RS-232, USB - output connectors: 9 - 2U - black - with APC UPS Network Management Card - for P / N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR9300SP
images are for illustrative purposes only
New
Article: 1502034 SKU: SMX2200R2HVNC
Pricing and stock details are available to registered users only.
- Intuitive LCD interface
- High frequency design
- Auto recognition of external batteries
- Predictive replace battery date
- Green mode
- Energy meter
- Outlet group control
- Sequenced shutdown and restart
- Load shedding
- Audible alarms
- Pure sine wave output on battery
- Multiple switched outlet groups
- Wide input voltage range
- Battery failure notification
- High online efficiency
- LED indicators
- Overload protection
- Cold-start capable
- Hot-swappable batteries
- Disconnected battery notification
- Automatic self-test
- Automatic restart of loads after UPS shutdown
- Adjustable voltage-transfer points
- Adjustable voltage sensitivity
- Audible alarms
- User-replaceable batteries
- USB connectivity
- Serial connectivity
- Temperature-compensated battery charging
- Scalable runtime
- Intelligent battery management
- Safety-agency approved
- Rack/tower convertible
- Power conditioning
- Network manageable
- Frequency and voltage regulation
- Adjustable voltage sensitivity
- Predictive failure notification
High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
APC Smart-UPS X 2200 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime.
Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Colour | Black |
| Bundled with | APC UPS Network Management Card |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 280 V |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
| Output Voltage | AC 230 V 47 - 53 / 57 - 63 Hz |
| Power Capacity | 1980 Watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 645 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.1% |
| Quantity | 1 |
| Technology | Lead Acid |
| Run Time (Up To) | 9.8 min at full load ¦ 25.3 min at half load |
| Recharge Time | 3 hours |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP |
| Interfaces | 1 x USB ¦ 1 x RS-232 ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Cables Included | Serial cable ¦ USB cable ¦ Power cable 1.83 m |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function |
| Compliant Standards | CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH |
| Software Included | APC PowerChute Business Edition |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
| Width | 43.2 cm |
| Depth | 66.7 cm |
| Height | 8.5 cm |
| Weight | 37.24 kg |
| Shipping Width | 59.6 cm |
| Shipping Depth | 86.9 cm |
| Shipping Height | 24.3 cm |
| Shipping Weight | 45.26 kg |
| Designed For | P/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R |
