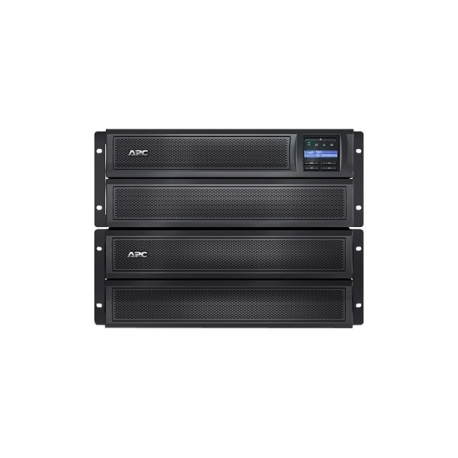

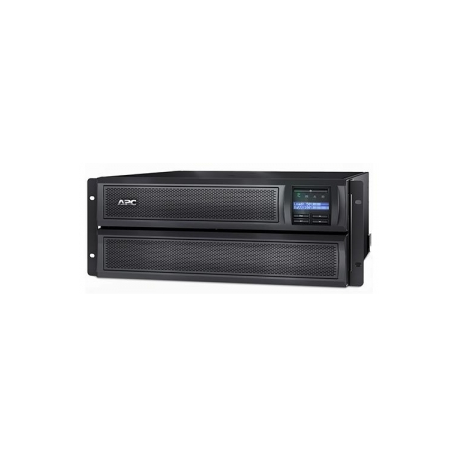

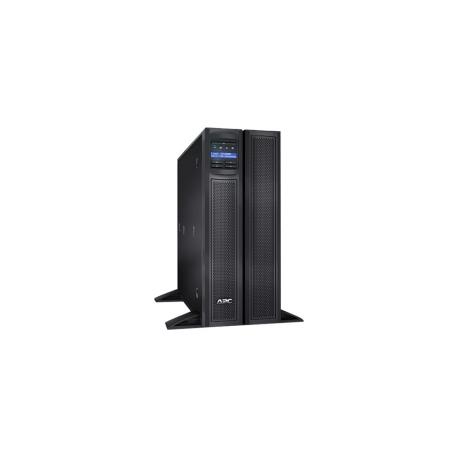

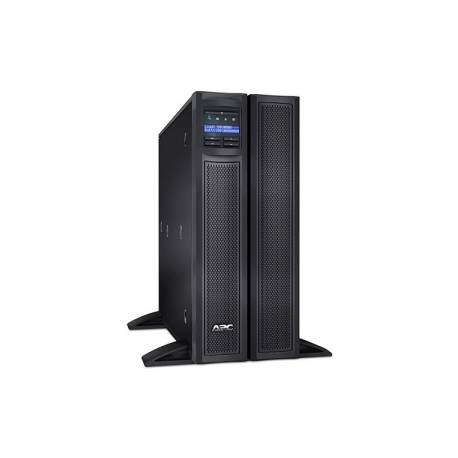

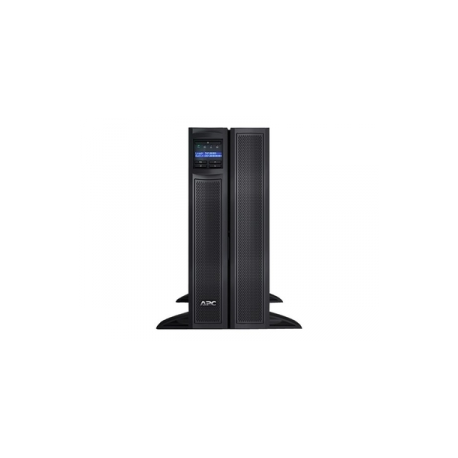

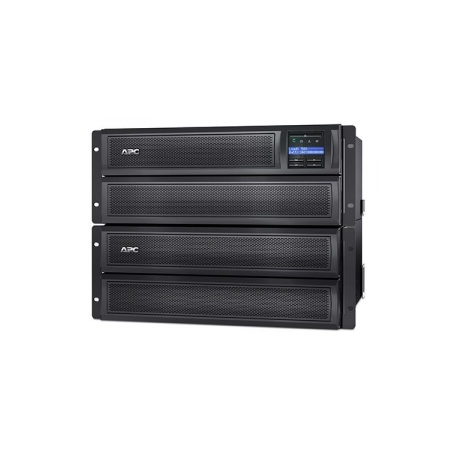

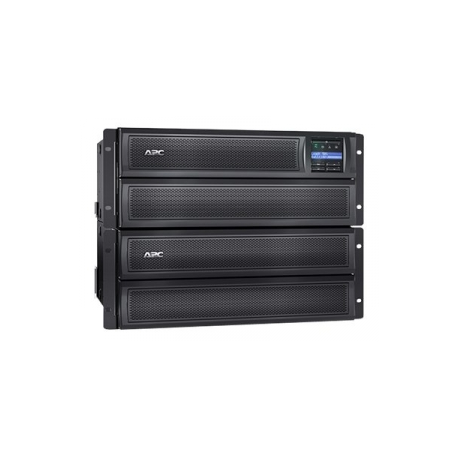

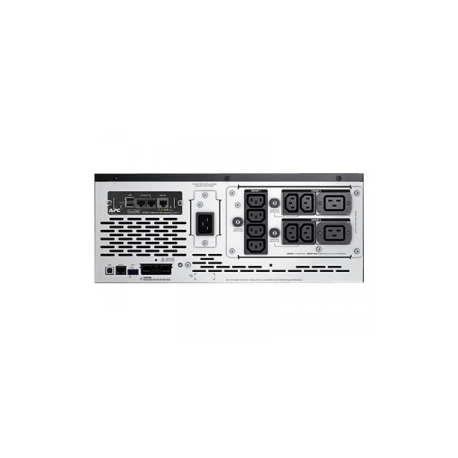

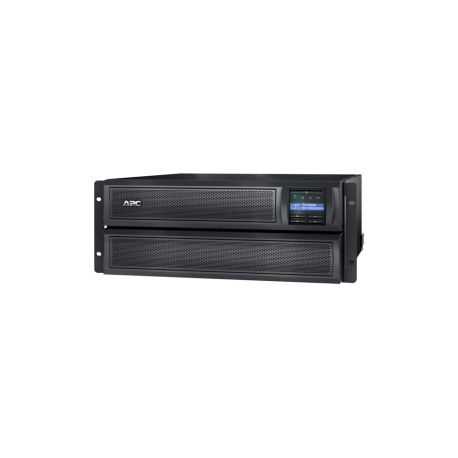

APC Smart-UPS X 3000 Rack / Tower LCD - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - Ethernet 10 / 100, RS-232, USB - output connectors: 10 - 4U - black - with APC UPS Network Management Card AP9631 - for P / N: AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A, SMX3000HVTUS
APC Smart-UPS X 3000 Rack / Tower LCD - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - Ethernet 10 / 100, RS-232, USB - output connectors: 10 - 4U - black - with APC UPS Network Management Card AP9631 - for P / N: AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A, SMX3000HVTUS
Manufacturer
•APC
Reference
•SMX3000HVNC
Article
•580908
Intrastat
•85044090
Shipping weight
•48.38 kg
Total quantity in stocks
•17
Nearest delivery
•26.03.2026
<ul><li>Intelligent battery management</li><li>Power conditioning</li><li>Temperature-compensated battery charging</li><li>Automatic restart of loads after UPS shutdown</li><li>Automatic self-test</li><li>Network manageable</li><li>Audible alarms</li><li>LED status indicators</li></ul>
Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.<br /><br />High frequency design reduces or eliminates bulky transformers resulting in lighter units for ease of handling.<br /><br />APC Smart-UPS X 3000 Rack/Tower LCD recognizes when external battery packs are attached and automatically adjusts runtime.<br /><br />Patent-pending operating mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.<br /><br /><p> </p>
Device Type
UPS - rack-mountable / external
Height (Rack Units)
4U
Colour
Black
Bundled with
APC UPS Network Management Card AP9631
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 140 - 280 V
Frequency Provided
47 - 63 Hz
Frequency Required
47 - 63 Hz
Input Connectors
1 x power IEC 60320 C20

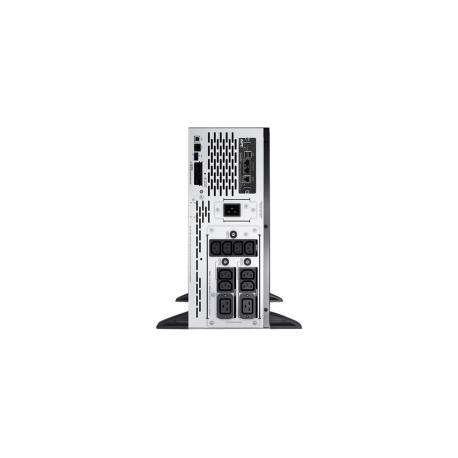

Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 230 V 47 - 63 Hz
Power Capacity
2700 Watt / 3000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
645 Joules
Circuit Protection
Circuit breaker
Efficiency
98.5%
Quantity
1
Technology
Lead Acid
Run Time (Up To)
6.3 min at full load ¦ 15.7 min at half load
Recharge Time
3 hours
Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Interfaces
1 x USB ¦ 1 x RS-232 ¦ 1 x EPO (emergency power off) ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x SmartSlot
Cables Included
Serial cable ¦ USB cable ¦ Power cable 1.83 m
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, overload protection
Compliant Standards
CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH
Software Included
APC PowerChute Business Edition
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
55 dBA
Width
43.2 cm
Depth
48.3 cm
Height
17.8 cm
Weight
38.64 kg
Shipping Width
58.6 cm
Shipping Depth
63.3 cm
Shipping Height
33 cm
Shipping Weight
47.73 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR
