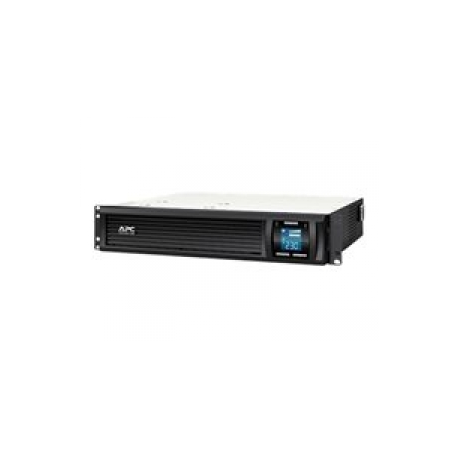

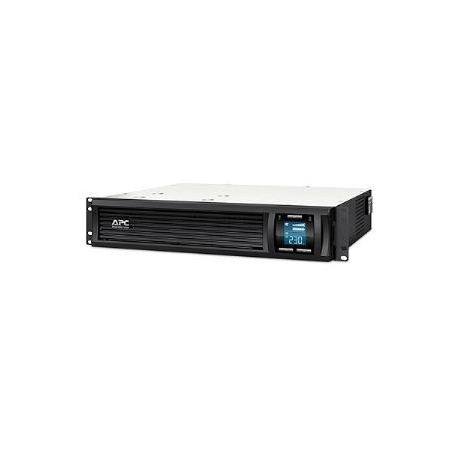

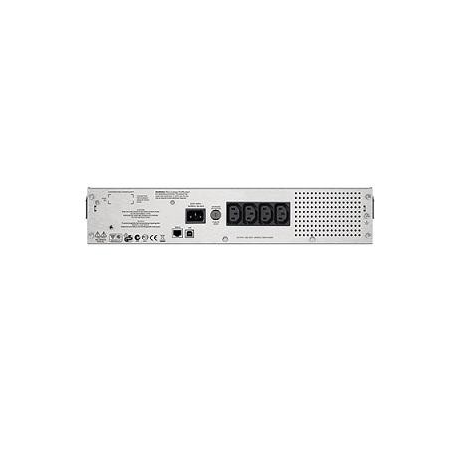

APC Smart-UPS C 1000VA 2U LCD - UPS (rack-mountable) - AC 230 V - 600 Watt - 1000 VA - USB - output connectors: 6 - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS C 1000VA 2U LCD - UPS (rack-mountable) - AC 230 V - 600 Watt - 1000 VA - USB - output connectors: 6 - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Manufacturer
•APC
Reference
•SMC1000I-2U
Article
•367777
Intrastat
•84734080
Shipping weight
•22.33 kg
<ul><li>Green mode</li><li>Pure sine wave output on battery</li><li>LCD status display</li><li>Cold-start capable</li><li>Temperature-compensated battery charging</li><li>Intelligent battery management</li><li>Power conditioning</li><li>Automatic restart of loads after UPS shutdown</li><li>Disconnected battery notification</li><li>Network manageable</li><li>Audible alarms</li><li>Serial connectivity</li><li>Hot-swappable batteries</li><li>Predictive failure notification</li><li>Resettable circuit breakers</li><li>Battery failure notification</li></ul>
Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Pure sine wave output on battery simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. LCD status display provides key UPS status at a glance. It has multiple status indicators with load and battery bar graphs. Cold-start capable provides temporary battery power when the utility power is out. Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.<br /><br /><p> </p>
Device Type
UPS - rack-mountable
Battery Enclosure Type
Internal
Height (Rack Units)
2U
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 180 - 287 V
Input Voltage Range (Adjustable)
AC 170 - 300 V
Frequency Provided
57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
1
Power Output Connectors Details
4 x power IEC 60320 C13 ¦ 1 x power
Output Voltage
AC 230 V ± 5% - 57 - 63 Hz
Power Capacity
600 Watt / 1000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
459 Joules
Circuit Protection
Circuit breaker
Quantity
1
Technology
Lead Acid
Run Time (Up To)
16 min at half load ¦ 6 min at full load
Recharge Time
3 hours
Remote Management Interface
USB
Interfaces
1 x management (USB) - 4 pin USB Type B
Cables Included
Power cable ¦ USB cable - external
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic shut down reset, automatic self-test, hot-swappable batteries
Compliant Standards
C-Tick, GOST, UL 1449, VDE, RoHS, REACH
Software Included
Drivers & Utilities
Service & Support
Limited warranty - parts and labour - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
42 dBA
Width
43.2 cm
Depth
40.6 cm
Height
8.9 cm
Weight
20.52 kg
Shipping Width
59.4 cm
Shipping Depth
58.4 cm
Shipping Height
24.1 cm
Shipping Weight
22.33 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W
