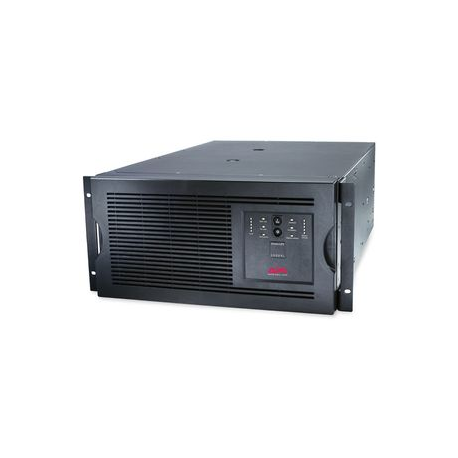

APC Smart-UPS - UPS (rack-mountable) - AC 208 V - 4 kW - 5000 VA - Ethernet 10 / 100, RS-232 - output connectors: 4 - 5U - black - for P / N: AR4038IX432, NBWL0356A, SMX2000LVNCUS, SMX2000LVUS, SMX3000HVTUS, SRT1000RMXLA
APC Smart-UPS - UPS (rack-mountable) - AC 208 V - 4 kW - 5000 VA - Ethernet 10 / 100, RS-232 - output connectors: 4 - 5U - black - for P / N: AR4038IX432, NBWL0356A, SMX2000LVNCUS, SMX2000LVUS, SMX3000HVTUS, SRT1000RMXLA
Manufacturer
•APC
Reference
•SUA5000RMT5U
Article
•1683354
Intrastat
•84734080
Shipping weight
•26.7 kg
Device Type
UPS - rack-mountable
Battery Enclosure Type
Internal
Height (Rack Units)
5U
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 208 V
Input Voltage Range
AC 141 - 255 V
Input Voltage Range (Adjustable)
AC 131 - 268 V
Frequency Provided
47 - 53 / 57 - 63 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA L6-30
Power Output Connectors Details
2 x power NEMA L6-20 ¦ 2 x power NEMA L6-30
Output Voltage
AC 208 V ± 5% - 47 - 53 / 57 - 63 Hz
Power Capacity
4 kW / 5000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
480 Joules
Quantity
2
Technology
Lead Acid
Run Time (Up To)
9.4 min at full load ¦ 26.7 min at half load
Recharge Time
3 hours
Remote Management Interface
Ethernet 10/100, RS-232
Remote Management Protocol
SNMP, Telnet, HTTP, HTTPS, WAP
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x SmartSlot
Cables Included
Serial cable - external
Rack Mounting Kit
Included
Equipment Protection Value
150000 US Dollars
Features
Audible alarm, LED indicators, noise filtering
Compliant Standards
CSA, UL 1449, UL 1778, RoHS Exemption 7b, RoHS, FCC Part 15 A
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 95%
Sound Emission
53 dBA
Width
48.3 cm
Depth
66 cm
Height
22.2 cm
Weight
97.7 kg
Shipping Width
61 cm
Shipping Depth
76.2 cm
Shipping Height
63.5 cm
Shipping Weight
107 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3
