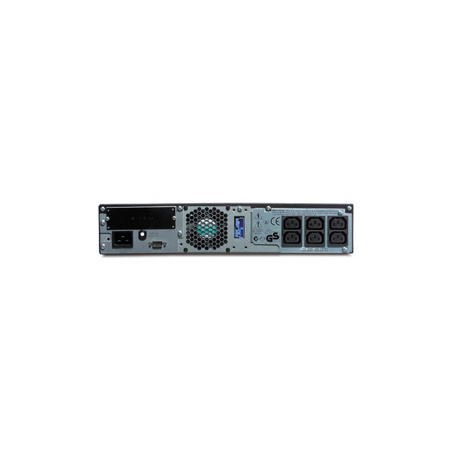

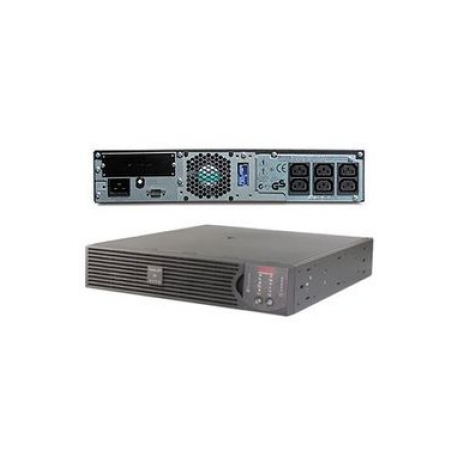

APC Smart-UPS RT 1000VA RM - UPS (rack-mountable) - AC 230 V - 700 Watt - 1000 VA - PFC - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
APC Smart-UPS RT 1000VA RM - UPS (rack-mountable) - AC 230 V - 700 Watt - 1000 VA - PFC - 2U - black - for P / N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Manufacturer
•SCHNEIDER
Reference
•SURT1000RMXLI
Article
•26325
Intrastat
•84734080
Shipping weight
•30 kg
APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Featuring double conversion on-line topology, the Smart-UPS RT protects your data by supplying reliable, network-grade power. An unlimited number of matching battery packs can be added to comply with aggressive runtime demands of "always on" business-critical systems. Rack-optimized models are an ideal choice for space constrained environments. With capacity up to 10kVA in a convenient rack-mountable 6U form, users can support power hungry blade servers or heavily loaded equipment racks. Customers looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction will find them in the Smart-UPS RT.<br /><br /><p> </p>
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable
Battery Enclosure Type
Plug-in module
Height (Rack Units)
2U
Colour
Black
UPS Technology
On-line
Supported Battery Technology
Lead Acid
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 280 V
Input Voltage Range (Adjustable)
AC 100 - 280 V
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Output Voltage
AC 230 V
Power Capacity
700 Watt / 1000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Response Time
0 ns
Surge Energy Rating
420 Joules
Technology
Lead Acid

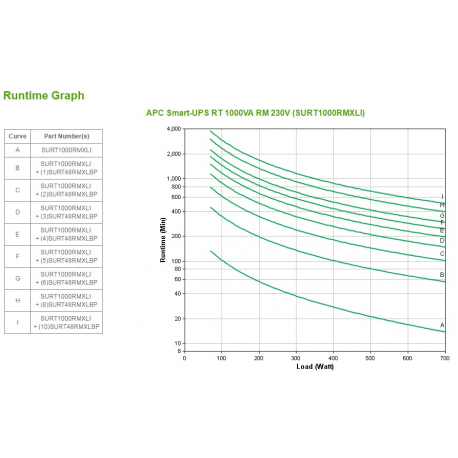

Run Time (Up To)
10.2 min at full load
Interfaces
1 x management (RS-232) - 25 pin D-Sub (DB-25)
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Cables Included
Serial cable - external
Rack Mounting Kit
Included
Features
Emergency power off, audible alarm
Compliant Standards
FCC Class A certified, CSA, UL 1778
Software Included
Drivers & Utilities
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Min Storage Temperature
-15 °C
Max Storage Temperature
45 °C
Humidity Range Operating
0 - 95%
Width
43.7 cm
Depth
48.8 cm
Height
8.6 cm
Weight
23 kg
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3
